Why Choose DOIT‘s Automatic Patch Pocket Setter?
Why Choose DOIT‘s Automatic Patch Pocket Setter?
Stop struggling with manual pocket sewing. Start producing with precision, speed, and zero skill gaps.
Pocket attachment is one of the most time‑consuming, skill‑dependent operations on any garment production line. Traditional manual pocket setting requires highly trained operators to mark, fold, position, and sew each pocket individually—and even then, consistency varies from piece to piece. The result? Bottlenecks, rework, and rising labor costs.

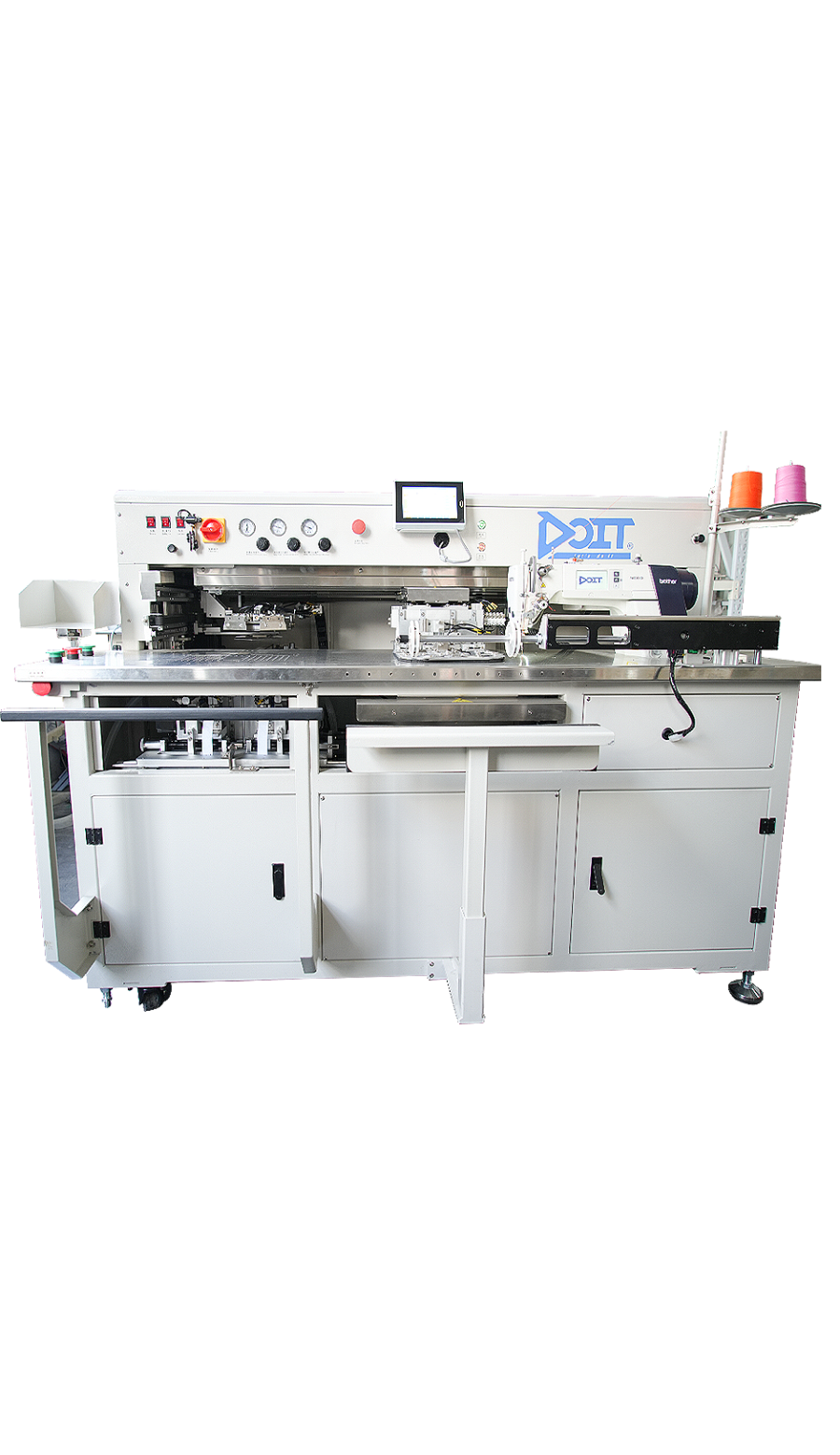

DOIT‘s DT‑13090T Automatic Intelligent Template Machine changes everything.
What Makes the DT‑13090T Different?
This is not a standard computerized pattern machine. It is a template‑based production system designed specifically for high‑volume, standardized manufacturing.
Key difference: Regular pattern machines require manual placement and alignment of cut pieces, making them suitable for small batches and multiple styles. The DT‑13090T uses pre‑fixed templates—cut pieces are clamped in place, and the machine automatically sews along the template path. One operator can manage multiple machines, dramatically increasing output while reducing labor dependency.
Core Advantages for Your Factory
1. Fully Automatic, One‑Button Operation
The DT‑13090T sews set patterns automatically with zero intervention once started. Simple, fast, efficient, and accurate—anyone can operate it.
2. No Skilled Operators Required
Designed specifically for ordinary workers, the intelligent template system eliminates the need for highly trained sewing operators. Pattern design follows fashion trends and can be created freely without worrying about sewing difficulty or accuracy.
3. Intuitive Color Touch Screen
The easy‑to‑use interface supports both Chinese and English, with all functions清晰 displayed. Basic operations can be performed by following on‑screen illustrations—minimal training required.
4. Automatic Template Identification
The machine automatically recognizes the template and identifies the sewing start point. One‑key operation aligns with standardized production processes—even novices can achieve professional results.
5. Simple, Convenient Programming
DXF and PLT graphics generated by garment CAD software can be directly used through the upper software. Alternatively, insert a USB flash drive to read graphics and convert them into runnable programs.
6. Thread Breakage Detection
Built‑in thread breakage detection ensures consistent sewing quality and prevents defects from going unnoticed.
7. Versatile Across Fabric Types
The DT‑13090T sews thin, medium, and thick fabrics with equal precision—from lightweight shirting to heavy denim and canvas.
8. Independent Sewing and Punching Heads
Separate heads guarantee the actual working area and make it convenient to open and reload templates—minimizing downtime between cycles.
Technical Specifications at a Glance
| Specification | DT‑13090T |
|---|---|
| Sewing Area | 1300mm × 900mm |
| 360° Rotation | Servo motor 600W |
| Max. Sewing Speed | 3,500 sti/min |
| Stitch Length | 0.05 – 50mm |
| Max. Stitches per Program | 20,000 |
| Presser Foot Lift | 22mm |
| Feed System | X screw servo motor 600W / Y screw servo motor 750W |
| Thread Trimming | Standard (circle knife) |
| Data Storage | USB |
| Main Motor | AC servo motor 750W |
The Bottom Line
The DT‑13090T Automatic Intelligent Template Machine transforms pocket attachment from a skilled‑labor bottleneck into a streamlined, automated process. It reduces training costs, increases output per operator, ensures consistent quality across every piece, and adapts to any fabric type—all with intuitive, one‑button operation.
For garment factories ready to automate pocket setting and scale production, DOIT‘s DT‑13090T is the solution.
Ready to upgrade your pocket setting line? Contact DOIT Group for a free consultation, live demonstration, or customized quote.
