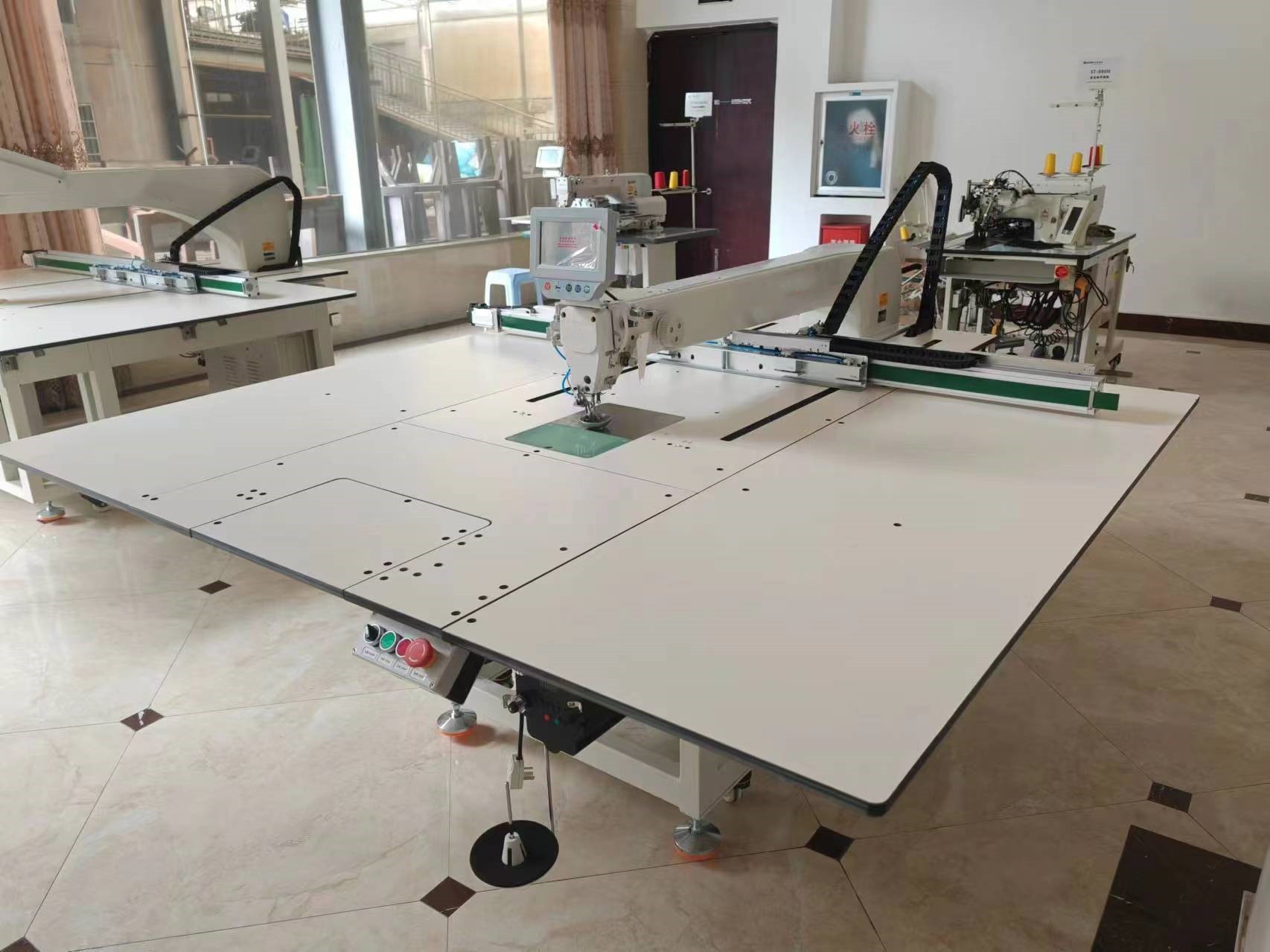

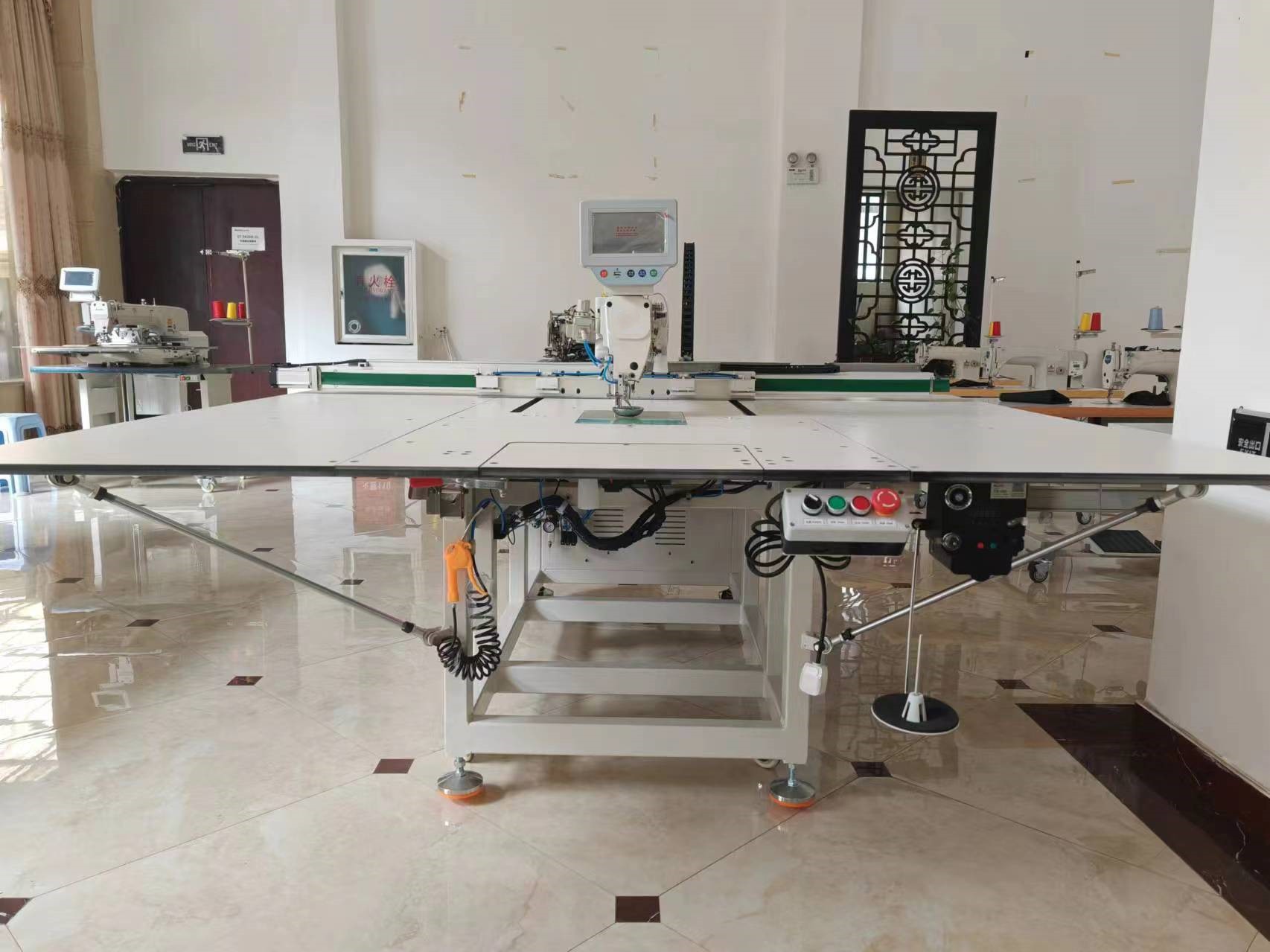

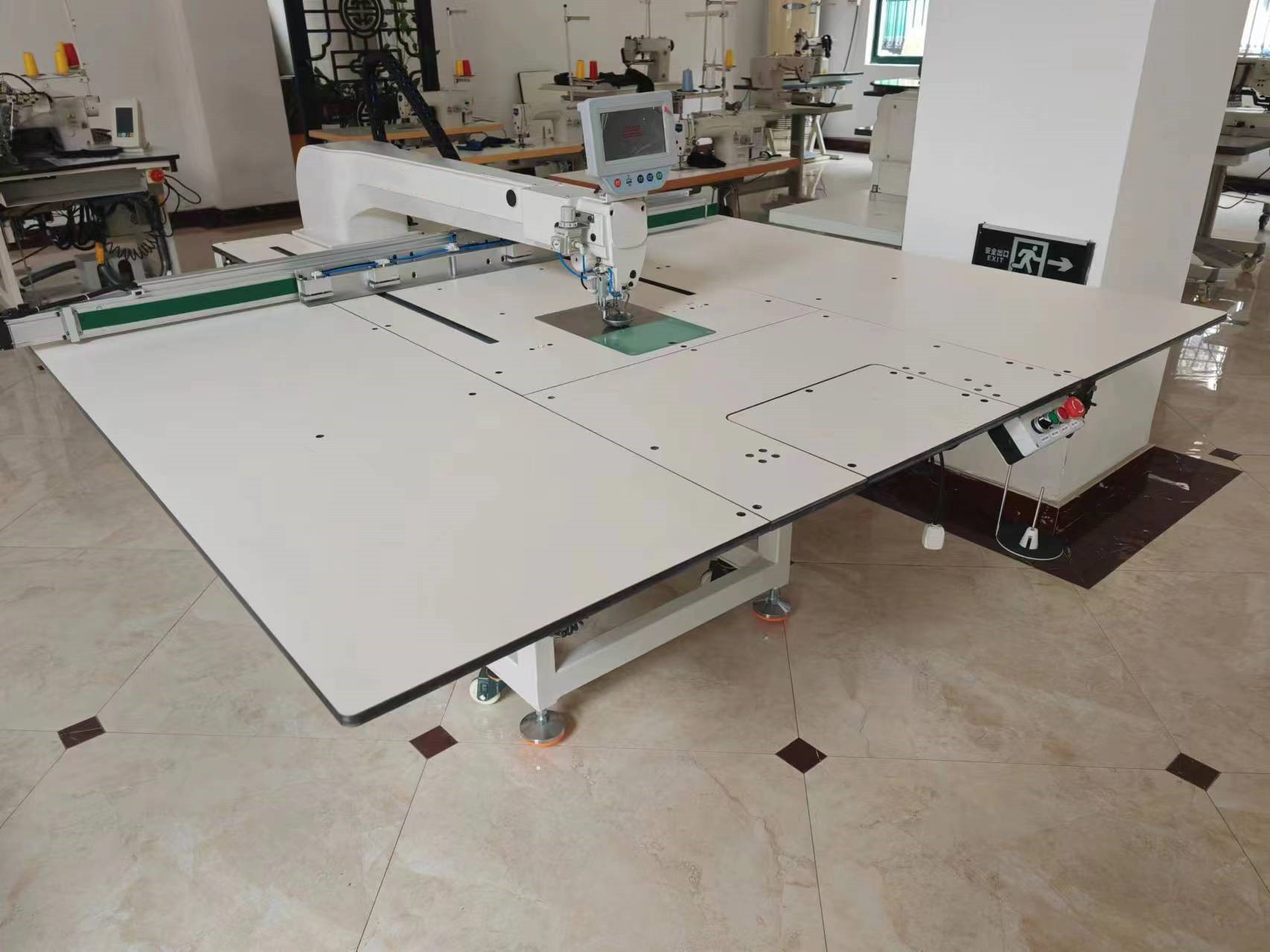

DT 13090T Automatic intelligent template machine

The DT 13090T is a high-efficiency automatic intelligent template sewing machine designed for standardized garment production. It combines one-button operation, automatic template recognition, and flexible programming to deliver precise, repeatable sewing results without the need for highly skilled operators.

This machine is ideal for factories producing shirts, T-shirts, jeans, coats, down jackets, and other garments that require consistent stitch quality across large production batches. With its large worktable, user-friendly touchscreen, and template-based workflow, the DT 13090T enables one operator to manage multiple machines, dramatically reducing labor costs and improving productivity.

Applications

The DT 13090T is widely used in garment manufacturing for template-based sewing of:

• Shirts – collars, cuffs, plackets, pockets, and front panels

• T-shirts – necklines, sleeves, and decorative stitching

• Jeans – back pockets, coin pockets, fly seams, and bartacks

• Coats and jackets – large panels, pockets, and lining attachments

• Down jackets – complex quilting patterns and baffle construction

• Workwear and uniforms – badges, logos, and reinforced areas

• Other textile products – any process requiring repeatable pattern sewing

The machine handles thin, medium, and thick fabrics, making it versatile enough for a wide range of materials including cotton, denim, canvas, synthetics, and coated fabrics.

Key Features

1. Efficient Intelligent Sewing – One Button Operation

The DT 13090T offers fully automatic sewing of set patterns with one-button operation. The entire process requires no intervention from start to finish, making it simple, fast, efficient, and accurate.

• Load the template

• Press one button

• Machine completes the sewing cycle automatically

This"everyone can work"design means factories no longer need to rely on highly skilled sewing operators for complex patterns. Even new workers can produce consistent, high-quality results with minimal training.

2. High-End Sewing with Free Pattern Design

Patterns can follow fashion trends and can be designed freely. There is no need to worry about sewing difficulty or accuracy—the intelligent template machine is specially designed for ordinary workers.

Key benefits:

• Create any pattern shape or stitch trajectory using software

• Update designs quickly to match market trends

• No need for specialized sewing skills

• Complex curves, angles, and decorative stitches are executed perfectly every time

3. Easy-to-Operate Color Touch Screen

The DT 13090T features an easy-to-operate color touch screen with Chinese and English operation interfaces that can be switched freely. All functions are clear at a glance, and basic operations can be performed by pressing keys as illustrated on the screen.

This intuitive interface reduces training time and allows operators to:

• Select and start patterns

• Monitor sewing progress

• Adjust parameters such as speed and stitch length

• Access help and diagnostic information

4. Template Identification Device

The machine automatically identifies the template and automatically identifies the starting point of sewing. With one-key operation, it conforms to standardized production processes, and there is no need to worry about novice operators.

• The machine recognizes the template type and loads the corresponding sewing program

• Automatic starting point detection eliminates alignment errors

• Standardized workflow ensures consistent output

• New workers can operate the machine with confidence

5. Simple and Convenient Programming

DXF and PLT graphics generated by garment CAD software can be directly used through the upper software. This eliminates the need for manual programming and allows seamless integration with existing design workflows.

Programming options include:

• Direct use of DXF/PLT files from CAD software

• USB flash drive reading of graphics

• Conversion into runnable programs via upper software

• On-screen editing for quick adjustments

6. Thread Breakage Detection Function

The machine is equipped with a thread breakage detection function that ensures sewing quality. If the thread breaks or runs out during operation, the machine stops immediately and alerts the operator, preventing defective products and reducing material waste.

7. Wide Range of Sewable Fabrics

The DT 13090T can sew thin, medium, and thick fabrics with equal precision. From delicate shirt fabric to heavy denim and multi-layer down jacket material, the machine adjusts automatically or via simple parameter settings to maintain consistent stitch quality.

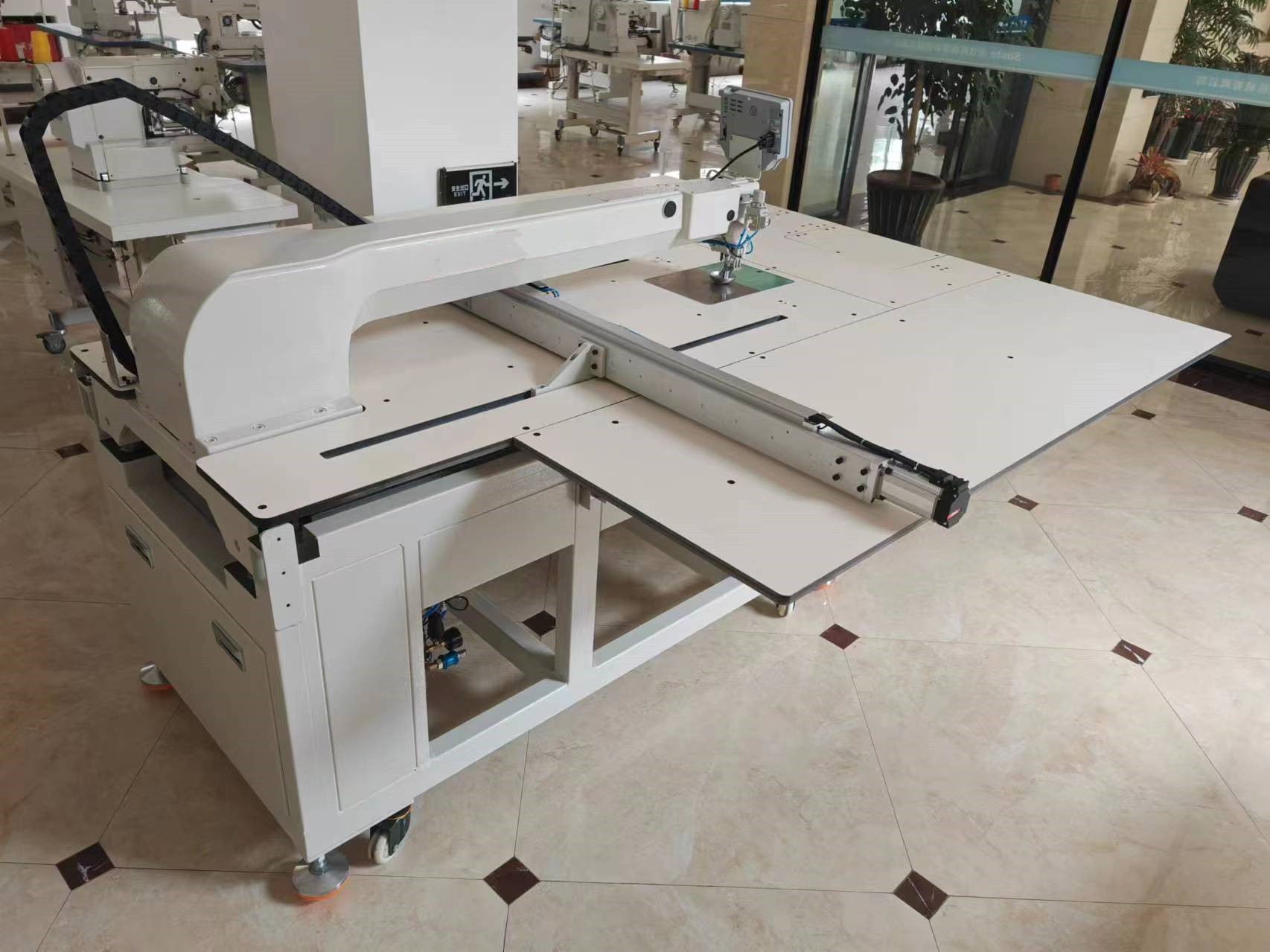

8. Independent Sewing Head and Punching Head

The sewing head and punching head are independent, guaranteeing the actual working area and making it convenient to open and reload the template. This design:

• Maximizes usable sewing area

• Allows easier access for template loading and unloading

• Reduces interference between sewing and punching functions

• Simplifies maintenance and template changes

Common Questions

1. What is a"template machine"? How is it different from a regular computerized pattern machine?

A template machine is an upgraded version of a computerized pattern machine, designed specifically for template-based production.

Regular pattern machine:

• Requires manual placement and alignment of cut pieces

• Suitable for small batches and multiple styles

• Operator must position each piece accurately

Template machine:

• Cut pieces are pre-fixed in templates

• Machine automatically sews along template trajectory

• One operator can manage multiple machines

• Suitable for mass production and standardized production

Core difference: Template machines are equipped with template clamping systems and large worktables. They can directly read template trajectories, so no manual intervention is needed for alignment. This makes template machines ideal for high-volume, repeatable sewing operations where consistency and speed are critical.

2. What are the worktable size and effective sewing area?

The 13090 series typically refers to 1300mm × 900mm worktable specifications.

• Standard model: 1300×900mm, suitable for regular garment templates like shirts, T-shirts, and jeans.

• Oversized models: 1500×1000mm or 2000×1200mm, suitable for large-size templates like coats and down jackets.

The effective sewing area is slightly smaller than the worktable size, depending on the template clamping system and the independent sewing/punching head design. Please refer to the specific machine documentation for exact dimensions.

3. What needle and hook types does it use?

The DT 13090T uses the following needle and hook specifications:

• Needle type: DP×17 #16–#23, select according to fabric thickness. Thinner needles for light fabrics, thicker needles for heavy materials.

• Hook type: 2x capacity hook (standard), which reduces bobbin change frequency and improves productivity.

• Needle bar stroke: 35–40mm, ensuring thick material penetration and reliable stitch formation on multi-layer fabrics.

4. How does the template work? Do I need to make templates myself?

The template system is the core of this machine:

1. Template making: According to cut piece shapes and sewing trajectory, use template materials (acrylic or HDF) to make upper and lower templates, sandwiching the cut pieces between them.

2. Template fixing: Cut pieces are placed between the upper and lower templates and fixed by positioning pins.

3. Machine recognition: The template is placed on the worktable. The template clamping system automatically clamps it, and the machine sews along the template edge or preset trajectory.

4. Template source: You can make templates yourself (requires a template cutter), or purchase standard templates from the supplier.

Making your own templates gives you full flexibility for custom designs, while purchasing standard templates is convenient for common shapes and quick setup.
