The DT 2210G-A/CH is a computerized pattern tacker machine equipped with a sliding presser foot and automatic feeding system. It is specially designed for sewing special fabrics and is mainly used for label attaching with varied sizes. By using a professional presser foot and model plate, this machine accurately sews various labels with a sewing area of 220mm × 100mm.

This electronic pattern sewing machine is ideal for medium to large-scale batch production. Compared with standard pattern tackers, it integrates an automatic feeding mechanism for continuous operation, significantly reducing material handling time and improving overall production efficiency.

Applications

The DT 2210G-A/CH is widely used for precision pattern sewing and label attaching on special fabrics. Typical applications include:

• Label attaching – brand labels, size labels, care labels, and woven labels of various sizes

• Garment accessories – logos, badges, emblems, and decorative patches

• Denim and jeans – leather patches, brand tabs, and reinforced label stitching

• Uniforms and workwear – name tags, company logos, and identification labels

• Bags and luggage – brand labels, decorative patches, and functional tags

• Footwear – tongue labels, side logos, and decorative stitching

• Special fabrics – materials that require precise handling and consistent stitch quality

• Technical textiles – industrial and functional labels on coated or laminated fabrics

The sliding presser foot and model plate system allow accurate positioning and stitching of different label sizes without complex mechanical changes. This makes the machine highly suitable for factories producing multiple label styles in medium to large batches.

Key Features

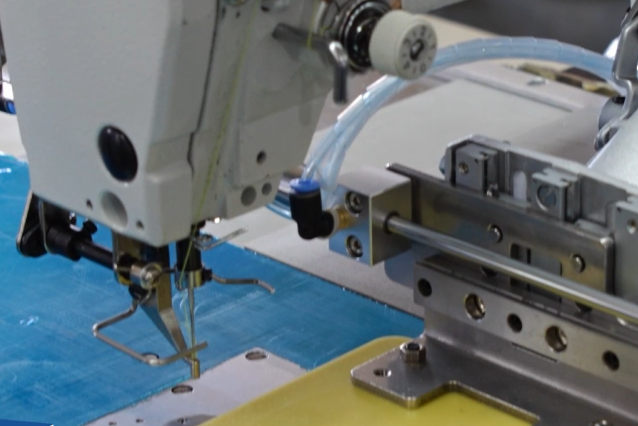

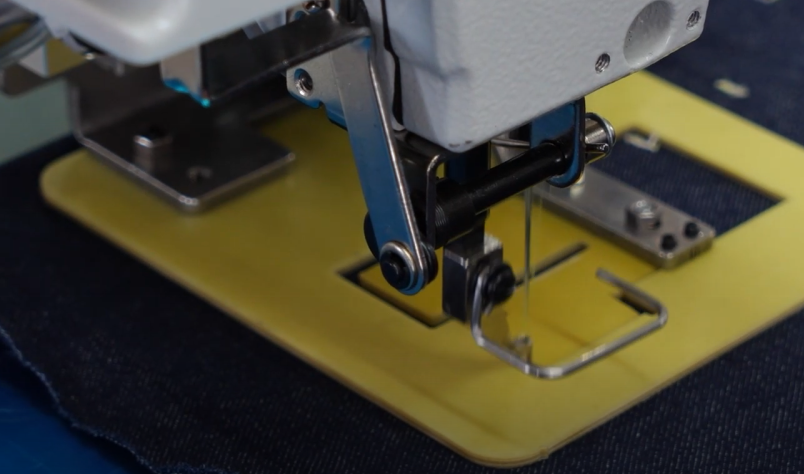

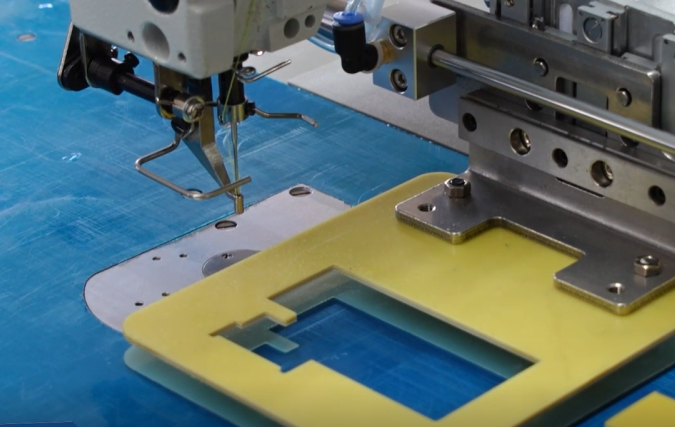

1. Sliding Presser Foot for Special Fabrics and Labels

The sliding presser foot is designed to handle special fabrics and varied label sizes with precision. It ensures:

• Stable fabric control during sewing

• Accurate positioning of labels

• Reduced fabric distortion

• Consistent stitch quality on delicate or difficult materials

Combined with the professional model plate, the machine can accurately sew various labels within the 220mm × 100mm sewing area.

2. Automatic Feeding System (A)

The “A” in the model name stands for Auto Feeding system. This integrated automatic feeding mechanism enables continuous operation and significantly reduces material handling time.

Benefits include:

• Higher production efficiency

• Less operator fatigue

• Consistent feeding for batch production

• Reduced downtime between sewing cycles

3. Cylinder Hook / High Capacity Configuration (CH)

The “CH” stands for Cylinder Hook / High Capacity configuration. This setup is designed for high-volume production and provides:

• Larger bobbin capacity

• Fewer bobbin changes

• Stable stitch formation at high speeds

• Reliable performance during long production runs

Together, “A/CH” indicates a pattern machine equipped with automatic feeding for high-volume production.

4. Single-Needle Lockstitch with Programmable Patterns

The machine uses single-needle lockstitch and supports programmable pattern sewing. Through pattern programming, it can sew:

• Straight lines

• Curves

• Circles

• Squares

• Irregular shapes

• Any arbitrary stitching path

This flexibility allows manufacturers to create custom label stitching patterns and decorative designs without additional mechanical cams.

5. 220mm × 100mm Sewing Area

The standard sewing area is 220mm × 100mm, providing ample space for label attaching and pattern sewing. This size is suitable for most garment labels, logos, and decorative patches.

6. Optional Thread Breakage Sensor with Resume Function

The machine can be equipped with an optional thread breakage sensor that triggers an immediate stop and alarm upon detection. After recovery, it supports resume sewing from breakpoint, eliminating the need to reposition the starting point.

This function helps:

• Reduce material waste

• Improve production efficiency

• Ensure consistent quality

• Simplify operation after thread breaks

Common Questions

1. What type of sewing machine is the DT 2210G-A/CH?

The DT 2210G-A/CH is an electronic pattern sewing machine with an automatic feeding system, designed for medium to large-scale, batch production of pattern stitching.

Compared to standard pattern tackers, it integrates an automatic feeding mechanism for continuous operation, significantly reducing material handling time. It is especially suitable for label attaching on special fabrics with varied sizes.

2. What does the “A/CH” suffix stand for?

• “A” stands for Auto Feeding system.

• “CH” stands for Cylinder Hook / High Capacityconfiguration.

Together, “A/CH” indicates a pattern machine equipped with automatic feeding for high-volume production. The cylinder hook provides larger bobbin capacity and stable stitching, while the auto feeding system enables continuous operation.

3. Does it support multiple stitch types?

This machine uses single-needle lockstitch. Through pattern programming, it can sew:

• Straight lines

• Curves

• Circles

• Squares

• Irregular shapes

• Any arbitrary stitching path

The programmable pattern system allows operators to create and store custom stitching designs, making the machine versatile for different label shapes and decorative requirements.

4. What happens when thread breakage or a fault occurs?

The machine can be equipped with an optional thread breakage sensor that triggers an immediate stop and alarm upon detection.

After recovery, it supports resume sewing from breakpoint, eliminating the need to reposition the starting point. This feature reduces downtime, minimizes material waste, and ensures that production can continue smoothly even after a thread break.

5. What is the advantage of the sliding presser foot?

The sliding presser foot provides better control over special fabrics and varied label sizes. It helps:

• Keep the fabric and label aligned

• Prevent shifting during sewing

• Reduce puckering or distortion

• Improve stitch consistency

This makes the machine especially suitable for delicate, slippery, or specialty fabrics that are difficult to handle with standard presser feet.

6. Is this machine suitable for high-volume production?

Yes. With the automatic feeding system (A) and cylinder hook / high capacity configuration (CH), the DT 2210G-A/CH is designed for high-volume production. One operator can manage continuous sewing with less manual handling, making it ideal for factories producing large batches of labeled garments, bags, or accessories.
