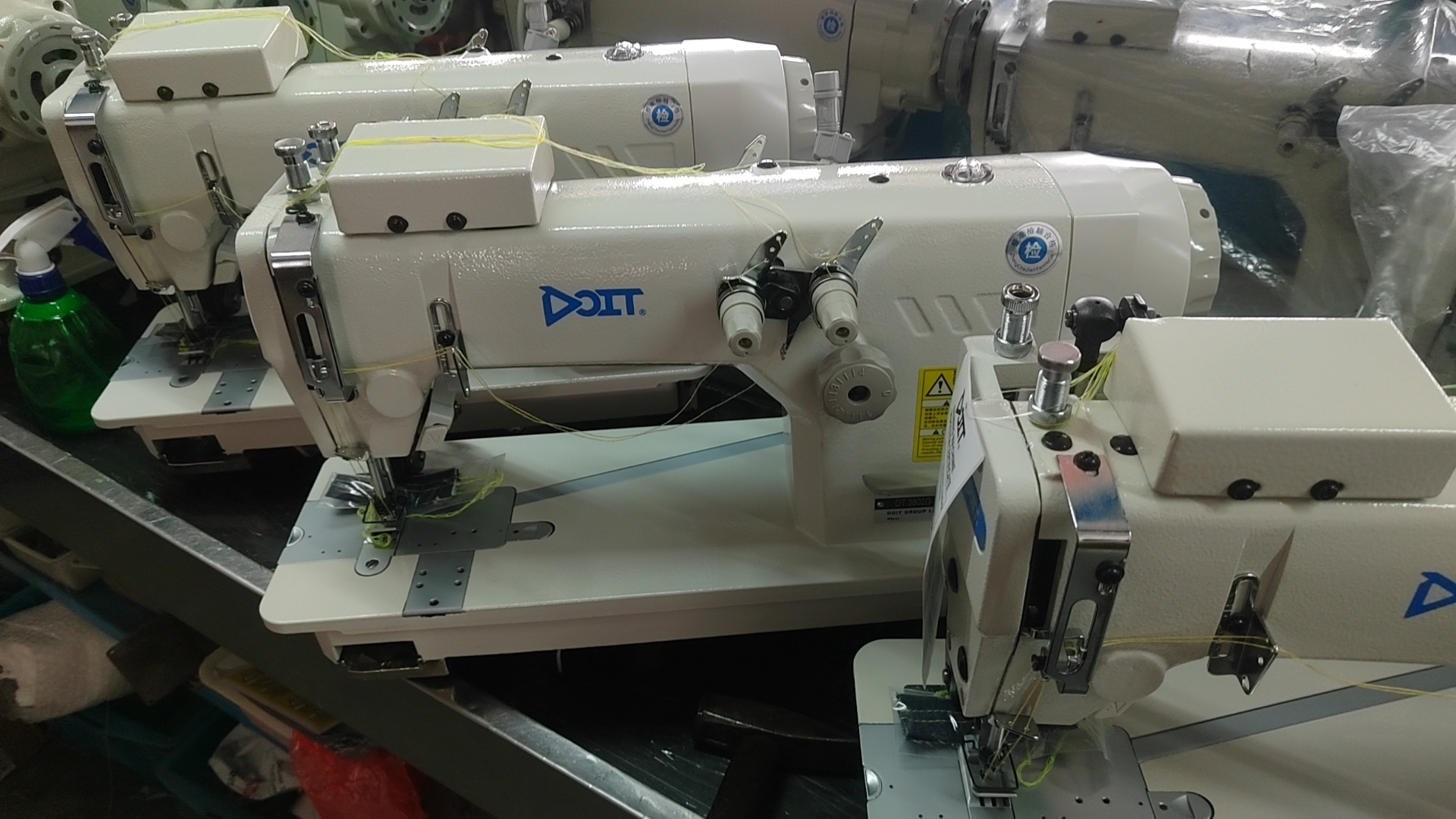

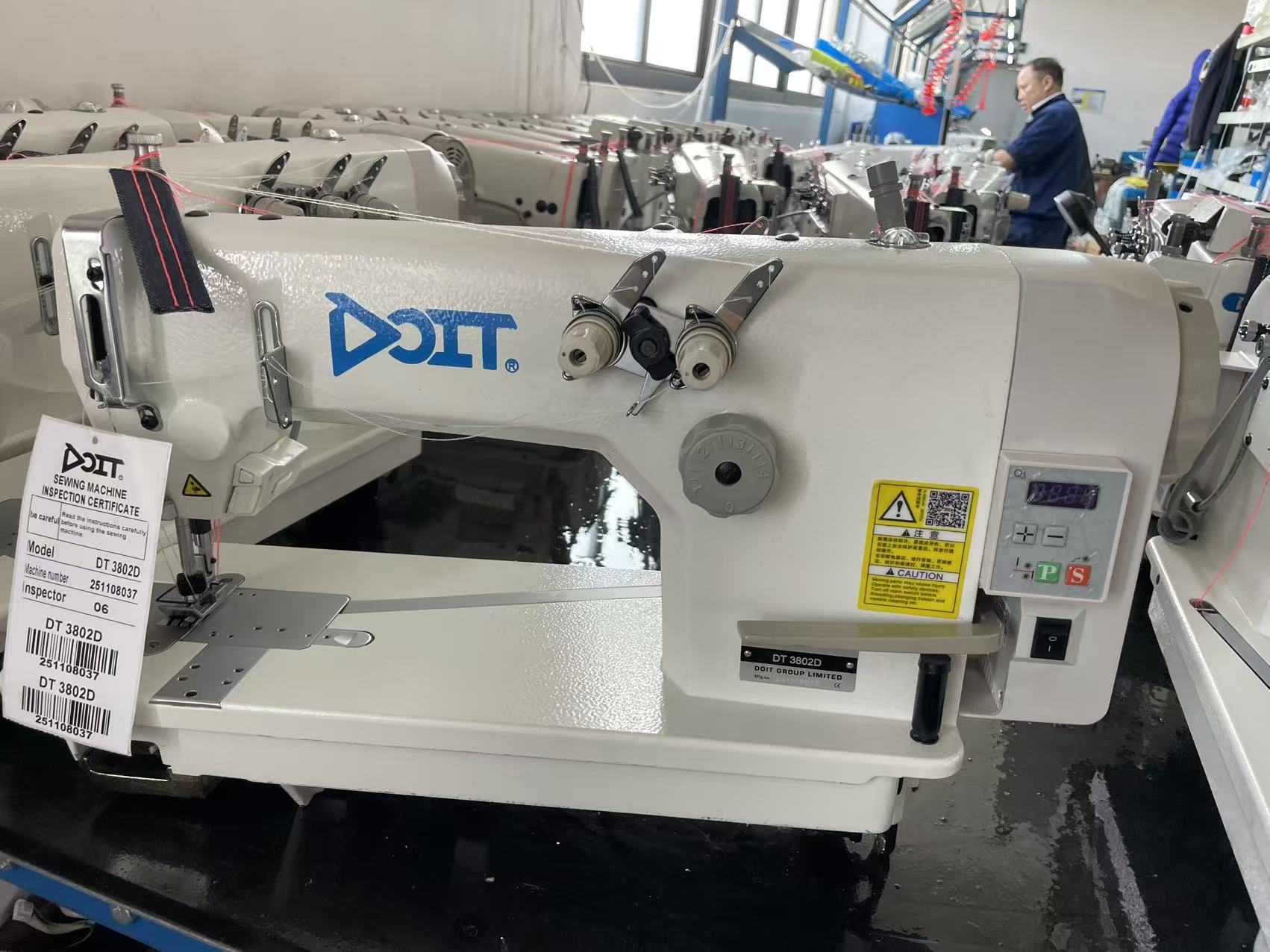

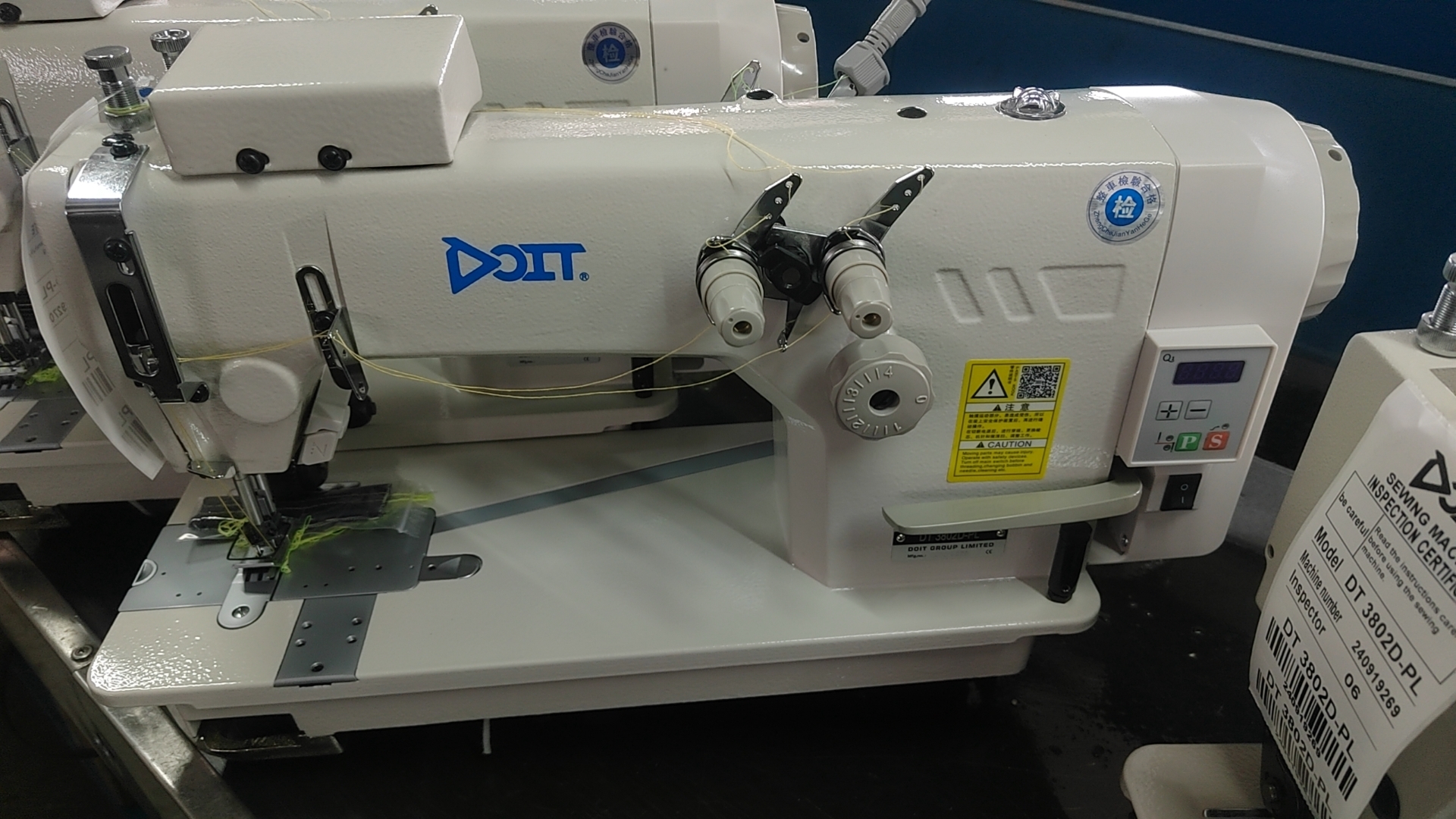

DT 3802D Direct drive double needle chainstitch sewing machine

The DT 3802D is a direct-drive double needle chain stitch sewing machine designed for high-speed, elastic seam construction on jeans, casual pants, workwear, and other garments requiring durable and flexible stitching. It features a double needle double thread chain stitch mechanism that produces strong, neat seams with excellent stretchability. The direct-drive servo motor (indicated by the"D"in the model name) delivers superior energy efficiency, responsiveness, and quieter operation compared with traditional belt-driven machines.

This machine is especially suitable for belt loop attaching, hemming, waistband attaching, and other processes where chain stitch elasticity and a clean reverse side are essential.

Applications

The DT 3802D is widely used in garment manufacturing for a variety of operations, including:

• Belt loop attaching on jeans, casual pants, and workwear

• Hemming on trousers, skirts, and other bottoms

• Waistband attaching on jeans and casual wear

• Side seams on knit garments where elasticity is required

• Decorative stitching on garments, underwear, bedding, and leather products

• Connecting sewing on items that benefit from stretchable seams

Its versatility and adjustable stitch width make it suitable for both functional and decorative applications.

Key Features

1. Link-Drive Feeding Mechanism with Two-Thread Chain Stitch

The machine adopts a link-drive feeding mechanism, with thread taken up by the needle bar and hooked by the looper to form a 2-thread chain stitch. This design ensures:

• Consistent stitch formation at high speeds

• Smooth feeding of fabric layers

• Reliable performance over long production runs

2. Solid and Flexible Chain Stitch with Adjustable Width

The chain stitch produced by the DT 3802D is both solid and flexible, making it ideal for connecting sewing and decorative stitching on:

• Garments

• Underwear

• Bedding

• Leather products

Many types of stitch width are adjustable, allowing manufacturers to customize the seam appearance and elasticity to match specific product requirements.

3. Easy Condensed Stitch Setting

It is very easy to set the machine to perform condensed stitching (also known as reinforcement stitching) by operating a lever. These condensed stitches prevent thread from unraveling at the start and end of seams, ensuring secure finishes without the need for manual backtacking.

• Quick lever operation

• Automatic reinforcement at seam ends

• Prevents thread coming loose

4. Easy Stitch Length Adjustment

Stitch length can be adjusted with ease, enabling operators to quickly adapt the machine to different fabric types and seam requirements. This flexibility supports a wide range of sewing applications without complex mechanical changes.

5. Direct Drive Servo Motor

The direct drive servo motor provides significant advantages over traditional clutch or belt-driven motors:

• Energy savings of up to 40–50%

• Lower vibration and noise

• Faster start/stop response

• Accurate needle positioning

• Reduced maintenance (no belt wear)

Common Questions

1. What type of machine is the DT 3802D Direct Drive Double Needle Chainstitch Sewing Machine?

The DT 3802D is a direct-drive double needle chain stitch sewing machine, featuring double needle double thread chain stitch. It is specifically designed for sewing belt loops, hemming, and waistband attaching on jeans, casual pants, workwear, and similar garments.

The letter "D" in the model name stands for Direct-Drive servo motor, which is more energy-efficient, responsive, and quieter than traditional belt-driven systems. This makes the machine ideal for modern factories seeking to reduce energy costs and improve operator comfort.

2. What is the difference between chain stitch and lockstitch? Why use chain stitch for certain processes?

Chain stitch features:

• Elasticity: Less prone to breaking when stretched, making it suitable for stress areas like jeans.

• Neat reverse side: Forms neat chain-like stitches on the back of the fabric.

• High speed: Chain stitch machines typically run faster than lockstitch machines.

• Easy removal: Pull the thread to remove stitches, convenient for rework.

Lockstitch features:

• Strong but lacks elasticity.

• Prone to breaking when stretched.

• Difficult to remove.

Chain stitch is mainly used for:

• Belt loops

• Hemming

• Waistband attaching

• Side seams

• Any area needing elasticity or a neat reverse side

The DT 3802D's chain stitch capability makes it the preferred choice for denim and knitwear applications where stretch and durability are critical.

3. What is the needle gauge (distance between needles)?

The double needle gauge (distance between the two needles) is typically available in several standard sizes:

• Standard: 6.4mm (1/4 inch) – most common

• Narrow: 4.8mm, 5.6mm

• Wide: 7.9mm, 9.5mm (approximately 5/16 inch and 3/8 inch)

Please choose the appropriate needle gauge according to your specific process requirements. Different gauges produce different seam widths and are selected based on the garment design and fabric type.
