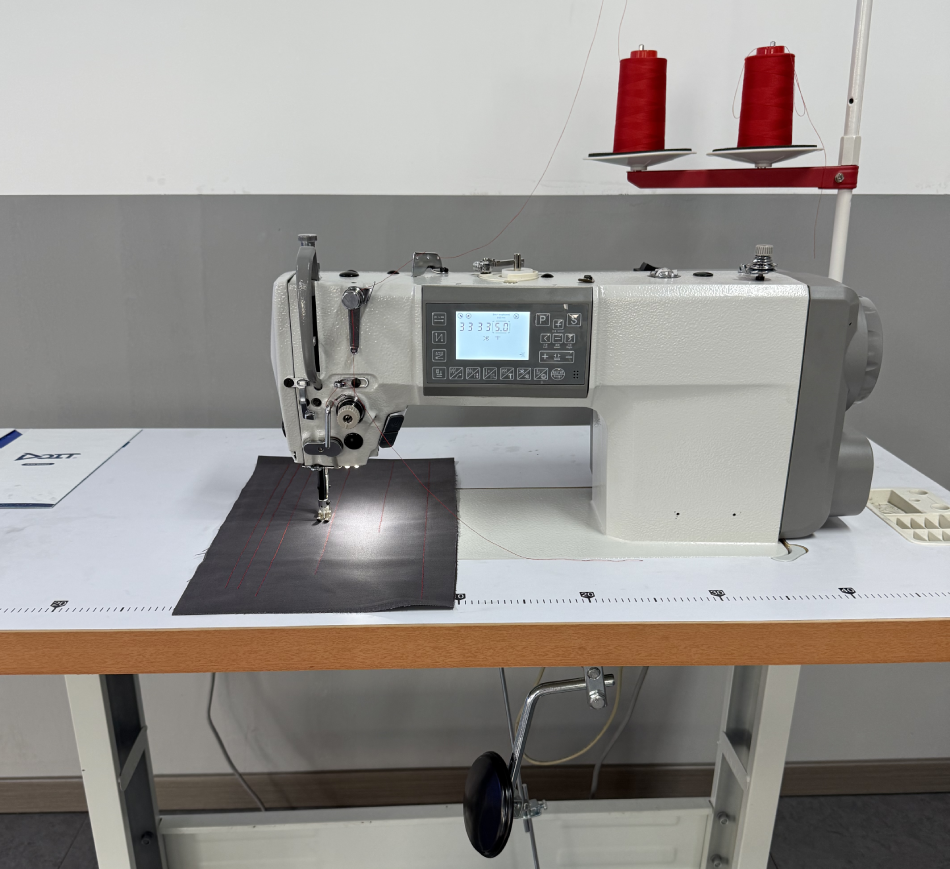

DT 7903-D4 Needle Feed Lockstitch Machine – Computer Direct Drive Industrial Electric Sewing Machine

The DT 7903-D4 is a computer direct-drive needle feed lockstitch industrial sewing machine designed for high-quality sewing on medium-thick and thick materials. It combines a built-in direct-drive servo motor, needle feed mechanism, automatic thread trimming, automatic reverse stitching, and dual stepper motor control to deliver precise stitching, higher efficiency, and lower energy consumption.

Compared with ordinary flat sewing machines, the DT 7903-D4 improves production efficiency by more than 15% and reduces power consumption by more than 35%. Its reliable performance and low maintenance design make it an excellent investment for garment factories, leather goods manufacturers, and technical textile producers.

Applications

The DT 7903-D4 is especially suitable for sewing medium-thick and thick fabrics, including:

• Denim and jeans – side seams, inseams, topstitching, and reinforced seams

• Canvas and workwear – heavy-duty seams on uniforms, coveralls, and industrial garments

• Leather goods – bags, wallets, belts, and leather accessories

• Upholstery – furniture covers, cushions, and automotive interiors

• Tents and tarpaulins – strong seams on outdoor and industrial fabrics

• Coated and laminated fabrics – materials requiring stable feeding and clean stitching

• Multi-layer synthetic materials – high-density fabrics where layer shifting is a concern

It is ideal for processes requiring high sewing accuracy, consistent stitch quality, and reliable feeding on difficult materials.

Key Features

1. Replaceable Needle Plates for Different Cut Widths

The machine can achieve different cut widths by replacing different types of needle plates, allowing it to meet various processing requirements. This flexibility makes it suitable for applications where edge trimming or cut width needs to be adjusted without changing the entire machine setup.

2. Direct-Drive Built-in Servo Motor

The direct-drive type built-in motor helps the machine start and stop swiftly, making needle positioning more accurate. Compared with traditional belt-driven systems, the direct-drive motor offers:

• Faster response

• Lower noise and vibration

• Higher energy efficiency

• More precise needle positioning

• Reduced maintenance due to no belt wear

3. Automatic Thread Trimming and Auto Reverse Device

The DT 7903-D4 is equipped with an automatic thread trimming device and an automatic reverse device, making cutting and back sewing more convenient.

• Auto thread trimmer: Cuts threads cleanly at the end of each seam

• Auto reverse: Performs backtacking automatically for seam reinforcement

• Short thread ends: Reduces manual trimming and improves finished appearance

• Beautiful stitching: Consistent seam overlap and neat stitch formation

4. Closed Anti-Crumbs Device

The closed anti-crumbs device keeps the hook part clean during sewing, ensuring the quality of materials. This is especially important when working with fabrics that generate lint or debris, as it helps prevent contamination and stitch defects.

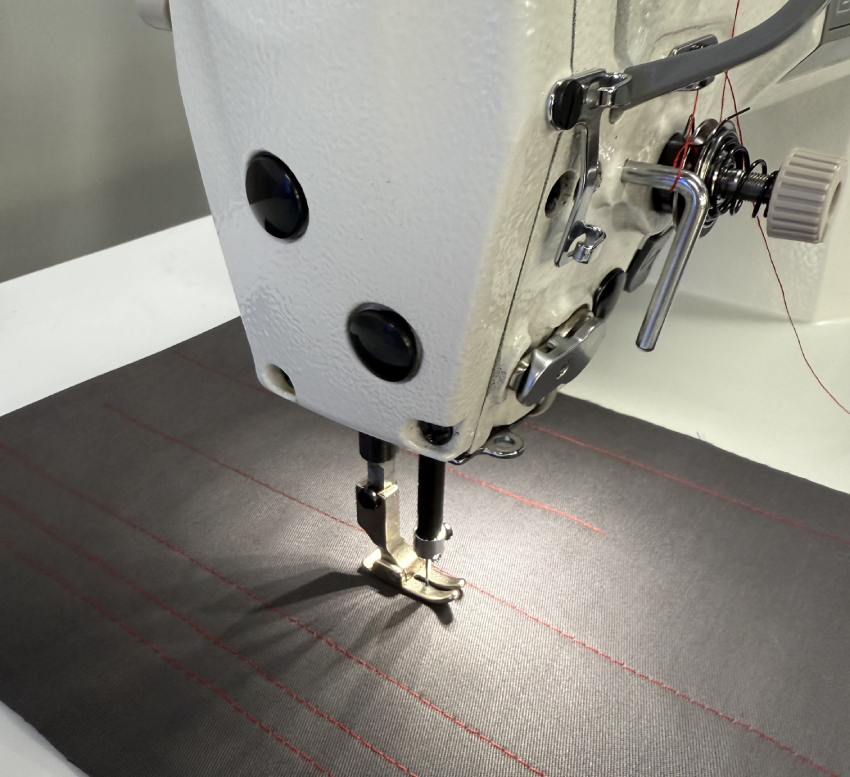

5. Needle Feed Mechanism – Needle Bar, Feed Dog, and Presser Foot Feed Together

The needle bar, feed dog, and presser foot can simultaneously feed fabric (two-in-one feeding), making sewing operations easier and more reliable. This needle feed system:

• Prevents layering or shifting of high-density or soft fabrics

• Keeps upper and lower fabric layers aligned

• Improves sewing accuracy

• Produces more beautiful and stable stitch patterns

6. Dual Stepper Motor Control

The dual stepper motor controls thread trimming, reverse sewing, and presser foot lifting. There is no sound during thread trimming and presser foot lifting, making operation quieter and more comfortable. The system also ensures:

• Accurate thread trimming

• Smooth reverse stitching

• Quiet presser foot lifting

• Short thread ends and beautiful stitching

7. Energy Saving and Higher Productivity

Compared with ordinary driving devices, the DT 7903-D4 reduces power consumption by more than 35%. Compared with ordinary flat sewing machines, it improves production efficiency by more than 15%. In fact, the resources saved over approximately two years of use can recover the machine's working capital, making it a highly cost-effective investment.

8. Enclosed Small Oil Pan – Clean and Pollution-Free

The machine comes standard with an enclosed small oil pan, which helps keep the working area clean and pollution-free. This design reduces oil splatter and contamination, especially important for light-colored or high-quality materials.

Common Questions

1. What is"needle feed"? Compared to the conventional one, what advantages does it have?

Needle feed means that the needle bar, feed dog, and presser foot move synchronously, jointly pushing the fabric during sewing. Compared with the single-teeth feeding method, needle feeding can effectively prevent layering or shifting of high-density fabrics or soft fabrics during sewing.

Key advantages include:

• Upper and lower layers of garment pieces are always aligned

• Higher sewing accuracy

• More beautiful and stable stitch patterns

• Reduced puckering and fabric distortion

• Better control on thick, dense, or slippery materials

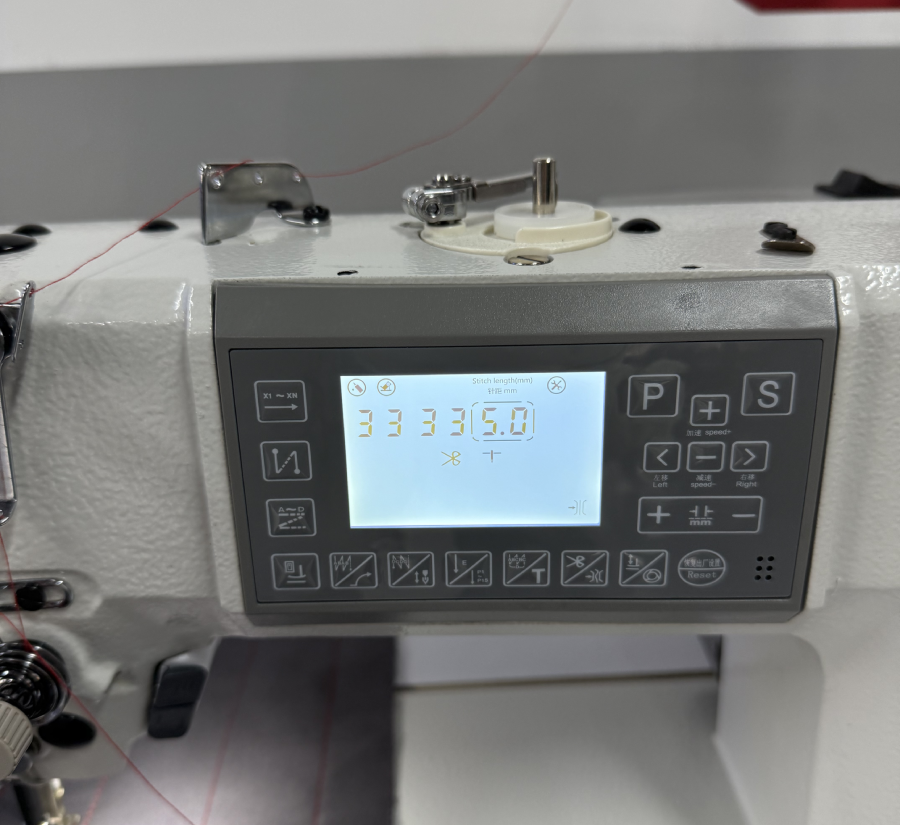

2. This machine is"computer direct drive."What exactly does this mean?

1. Direct drive motor: It refers to a servo motor that is directly installed on the machine's main shaft, unlike older machines which are connected through belts. This results in a more sensitive machine response, lower noise, less vibration, and greater energy efficiency.

2. Computer control: The machine is equipped with a computer operation panel and has four automatic functions, which can significantly enhance production efficiency. These automatic functions typically include automatic thread trimming, automatic reverse stitching, automatic presser foot lifting, and needle positioning.

Together, direct drive and computer control make the DT 7903-D4 faster, quieter, more accurate, and more energy-efficient than conventional industrial sewing machines.

3. Which fabrics is this machine mainly suitable for sewing?

With the needle feed structure, the DT 7903-D4 has very strong adaptability to fabrics. It is suitable for sewing medium-thick and thick fabrics.

Typical materials include:

• Denim

• Canvas

• Workwear fabrics

• Leather and synthetic leather

• Coated fabrics

• Upholstery materials

• Multi-layer technical textiles

It is especially recommended for applications where layer shifting, puckering, or uneven feeding is a common problem.

4. Does the machine require frequent maintenance?

The DT 7903-D4 is designed for reliable, low-maintenance operation. The direct-drive motor eliminates belt wear, and the closed anti-crumbs device helps keep the hook area clean. Recommended maintenance includes:

• Regular cleaning of the hook and feed area

• Checking the needle plate and feed dog for wear

• Lubrication according to the manufacturer's schedule

• Periodic inspection of the thread trimmer and stepper motor functions

With proper care, the machine delivers long-term stable performance and low maintenance costs.
