DT MA530-JG Intelligent template sewing machine with laser cutting device

DT MA530-JG Intelligent Template Sewing Machine With Laser Cutting Device – Applications & FAQ

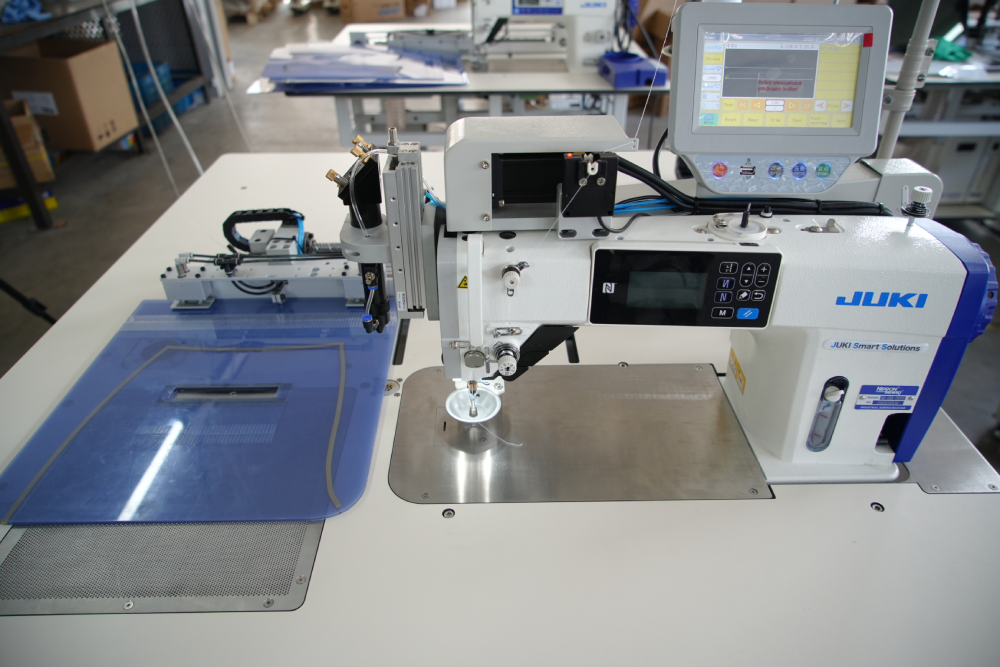

The DT MA530-JG is a highly integrated industrial sewing and cutting system that combines intelligent template automatic sewing with high-precision laser cutting. It is designed for modern garment factories that need to produce small parts with complex contours and decorative stitches at high speed and consistent quality.

This machine is particularly suitable for small parts processing on assembly lines, such as auto back, pocket, cap, vent, placket, and similar components. By eliminating separate cutting and sewing steps, the DT MA530-JG significantly reduces labor costs, production time, and material waste.

The DT MA530-JG is widely used in garment manufacturing and textile processing for small parts on assembly lines. Typical applications include:

• Auto Back (Automatic Back Yoke / Back Panel)

• Pockets – including curved, angled, and shaped pockets

• Caps / Hat Components

• Vents – such as jacket vents, sleeve vents, and back vents

• Plackets – shirt plackets, cuff plackets, and front plackets

• Other small parts – flaps, tabs, straps, collars, and decorative patches

This versatility makes the machine suitable for shirts, jackets, trousers, workwear, casual wear, and technical garments where precise shapes and decorative stitching are required.

Key Features

1. Innovative Suction Module Design

The machine features an innovative suction module with low noise, low power consumption, and strong suction performance.
Suction power: 850W
This ensures stable fabric fixation during sewing and cutting, even for lightweight or slippery materials.

2. New X-Axis and Y-Axis Modular Design

The X-axis and Y-axis use a modular design that provides:

• Lighter and quieter operation

• Longer service life

• Easier maintenance and part replacement

3. Double Screw, Double Servo, Multi-Slider Drive Structure

The machine adopts a double screw and double servo multi-slider drive system, which effectively achieves:

• Light sound and low vibration

• Accurate positioning accuracy

• Stable and reliable performance during high-speed operation

4. Special Auxiliary Large Presser Foot

Equipped with a special auxiliary large presser foot, the machine effectively prevents fabric from moving during the sewing process. This guarantees consistent stitch quality and reduces rejects caused by fabric shifting.

5. Follow-Up Central Presser Foot Design

The follow-up central presser foot can be programmed according to fabric thickness. This makes the machine more flexible for high and low sewing, allowing smooth transition between different material thicknesses without manual adjustment.

6. RFID Chip Identification Technology

The whole series is equipped with RFID chip identification technology. This allows:

• Faster and more sensitive response

• Accurate template recognition

• Automatic parameter loading for different templates

• Reduced setup time and improved production efficiency

Common Questions

1. What is the main function of this machine?

The DT MA530-JG is a highly integrated industrial device that combines two core functions: intelligent template automatic sewing and high-precision laser cutting.

It can automatically complete the entire process from fabric cutting to complex pattern sewing, without the need for manual cutting, trimming, or frequent changes of sewing thread patterns.

This machine is particularly suitable for producing products with complex decorative stitches and precise contours. The laser cutting device ensures clean edges, while the template sewing system delivers consistent stitch quality.

2. Which industries and products does it apply to?

The DT MA530-JG is used for small parts processing on assembly lines, for example:

• Auto Back

• Pocket

• Cap

• Vent

• Placket

• Flaps, tabs, collars, and other shaped components

It is ideal for garment factories producing shirts, jackets, trousers, workwear, uniforms, and technical apparel.

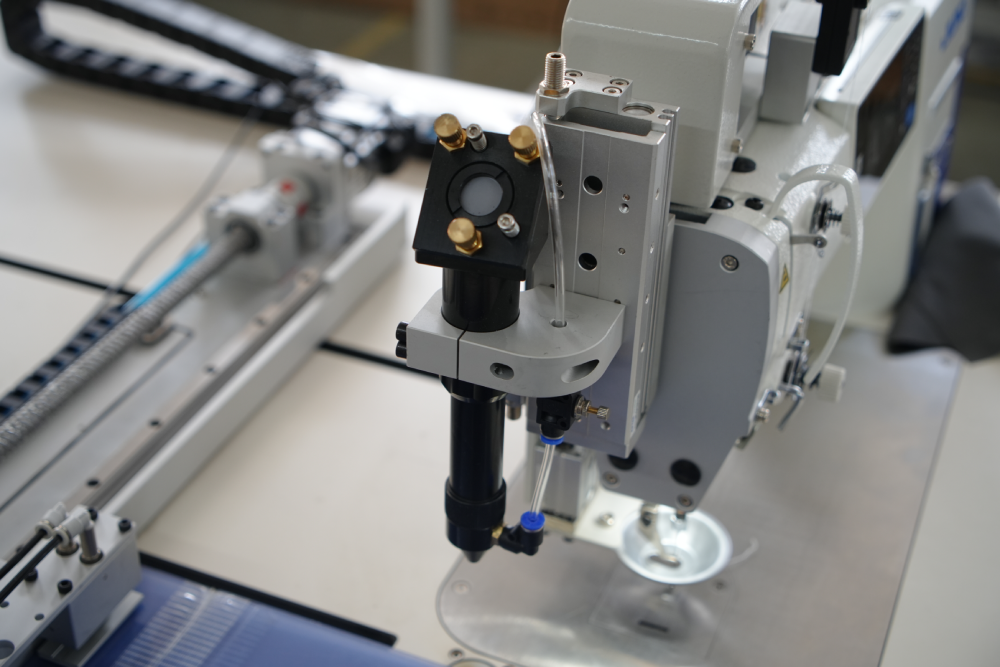

3. How adaptable is the laser cutting device to different fabrics?

The laser cutting unit demonstrates exceptional adaptability to a wide range of fabrics.

Equipped with an intelligent parameter control system and a specialized process database, the machine can safely and efficiently handle everything from delicate, lightweight materials to heavy-duty fabrics like denim, achieving clean cuts without fraying or distortion.

This adaptability allows manufacturers to switch between different fabric types without extensive reprogramming.

4. Do you support custom templates and patterns?

Absolutely. This is the core advantage of the DT MA530-JG.

You can freely design any sewing stitch and cutting shape according to customer needs, create digital templates, and store them in the machine or server. They can be called up at any time to achieve flexible production in small batches and multiple varieties.

This makes the machine highly suitable for fast-changing fashion orders and customized production.

5. Is the operation complicated? What kind of technicians are needed?

Daily production operations are relatively simple. Only basic training is required.

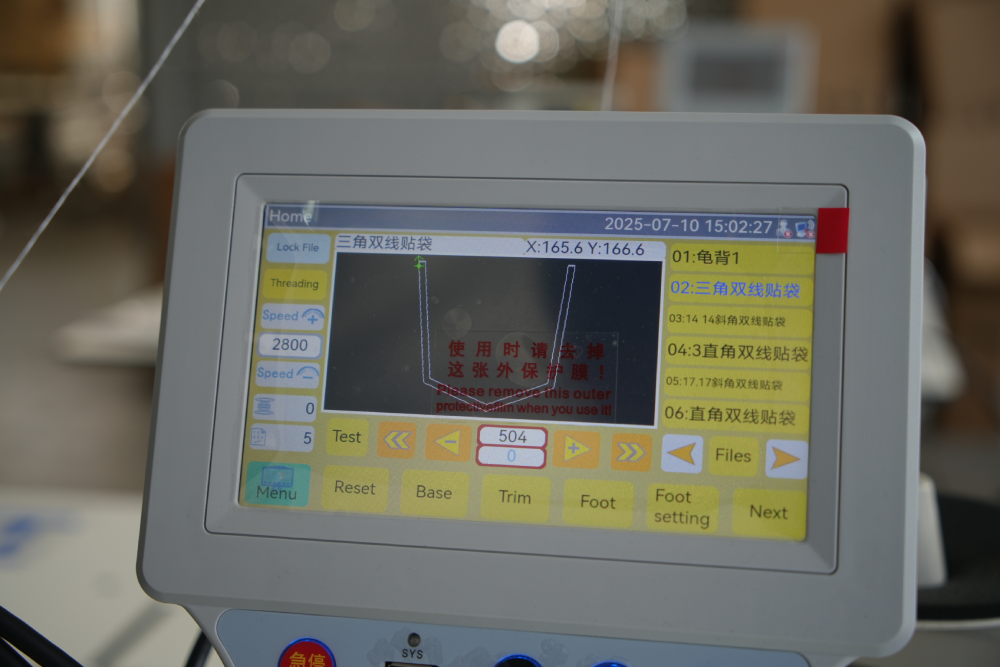

The machine's intelligent control system and RFID template recognition reduce the need for highly skilled operators. Template programming and maintenance can be handled by trained technicians, while ordinary workers can operate the machine for daily production tasks.

6. Where are the advantages compared to traditional manual operation or separate sewing/cutting equipment?

The DT MA530-JG offers several key advantages:

• Consistent quality: Templates and program control ensure that every product is exactly the same, without any deviation.

• Higher efficiency: The automated process reduces time for manual handling, alignment, and changing procedures. Production efficiency can be increased by several times.

• Lower labor requirements: It reduces reliance on highly skilled sewing and cutting workers. Ordinary workers can operate the machine after training.

• Space and cost savings: Combines cutting and sewing in one machine, reducing floor space and equipment investment.

• Flexibility: Digital templates allow quick changeover between different styles, supporting small batch and multi-variety production.

Compared with ordinary sewing machines, the efficiency has increased by 3–5 times.
